DOLPHIN
PROJECT
DOLPHIN PROJECT is the Ukrainian shipbuilding project, established in 2023. DOLPHIN PROJECT is a developer and manufacturer of the up-to-date maritime solutions.
ABOUT US
DOLPHIN PROJECT specializes in the design, production, and integration of unmanned surface vessels for a wide range of missions. Its production facilities enable the company to manage the entire project lifecycle, from conceptual design and engineering documentation to hull manufacturing and outfitting, payload integration, testing, operator training, and after-sales technical support. The company supplies defense-related products to Ukrainian government customers. The USVs it has delivered have a proven track record of successful use in ongoing combat operations in Ukraine.
OUR PROJECTS
TECHNICAL
SPECIFICATIONS
- Hull material
- Composite material
- Length
- 7 m
- Width
- 2.3 m
- Height
- 1.2 m
- Empty weight
- 1,400 kg
- Payload capacity
- 1,300 kg
- Fuel tank capacity
- 1,000 L
- Engine power
- 350 HP
- Draft at maximum load
- 550 mm
- Maximum speed
- 37 knots

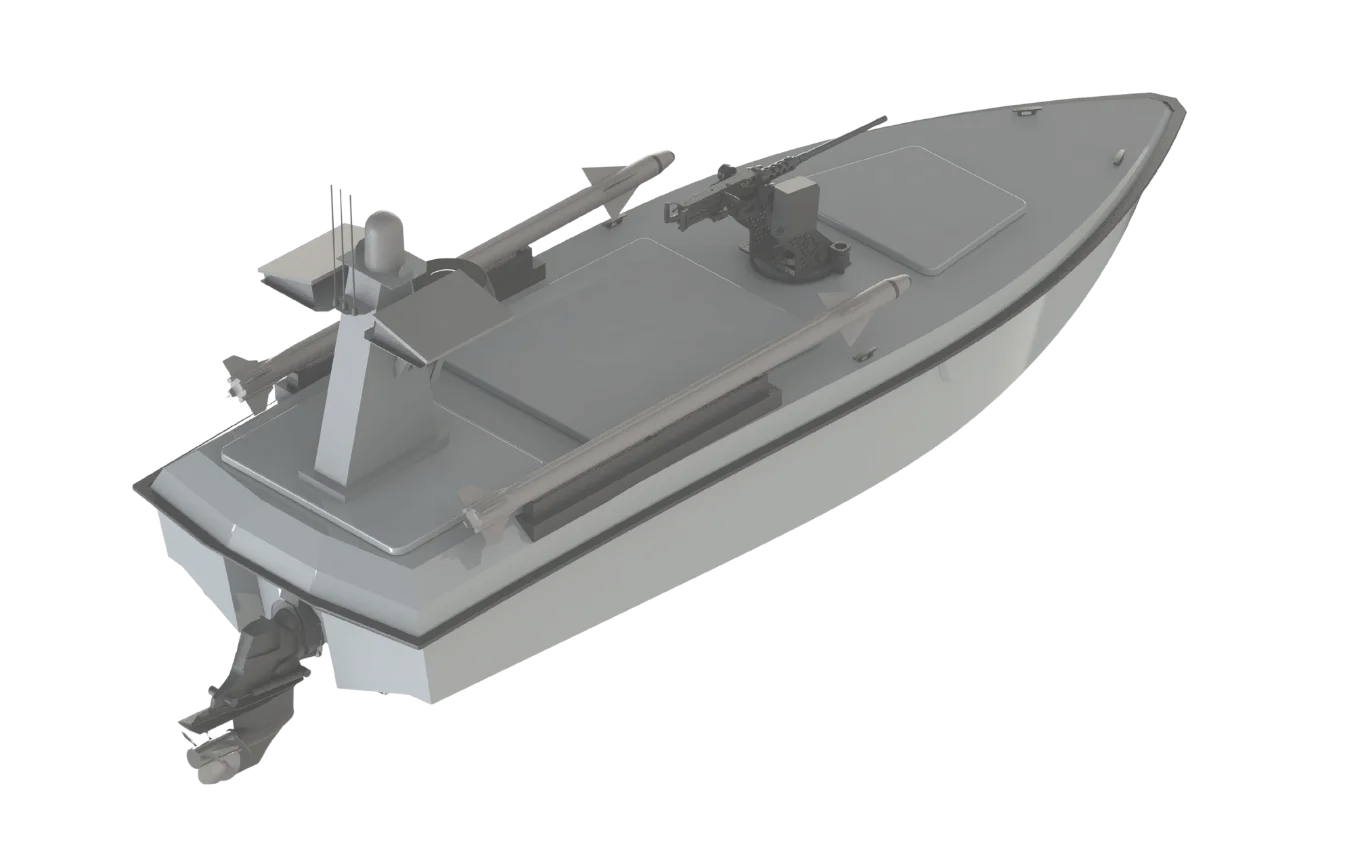

ABOUT USV DOLPHIN 7
No comment.
TECHNICAL
SPECIFICATIONS
- Hull material
- Reinforced composite
- Length
- 9 m
- Width
- 2.6 m
- Height
- 1.4 m
- Empty weight
- 2,100 kg
- Load capacity
- 3,500 kg
- Fuel tank capacity
- 2,000–3,000 L
- Range
- 1,200–2,500 km
- Engine power
- 350 HP
- Draft at maximum load
- 0.55 m
- Maximum speed
- 75 km/h

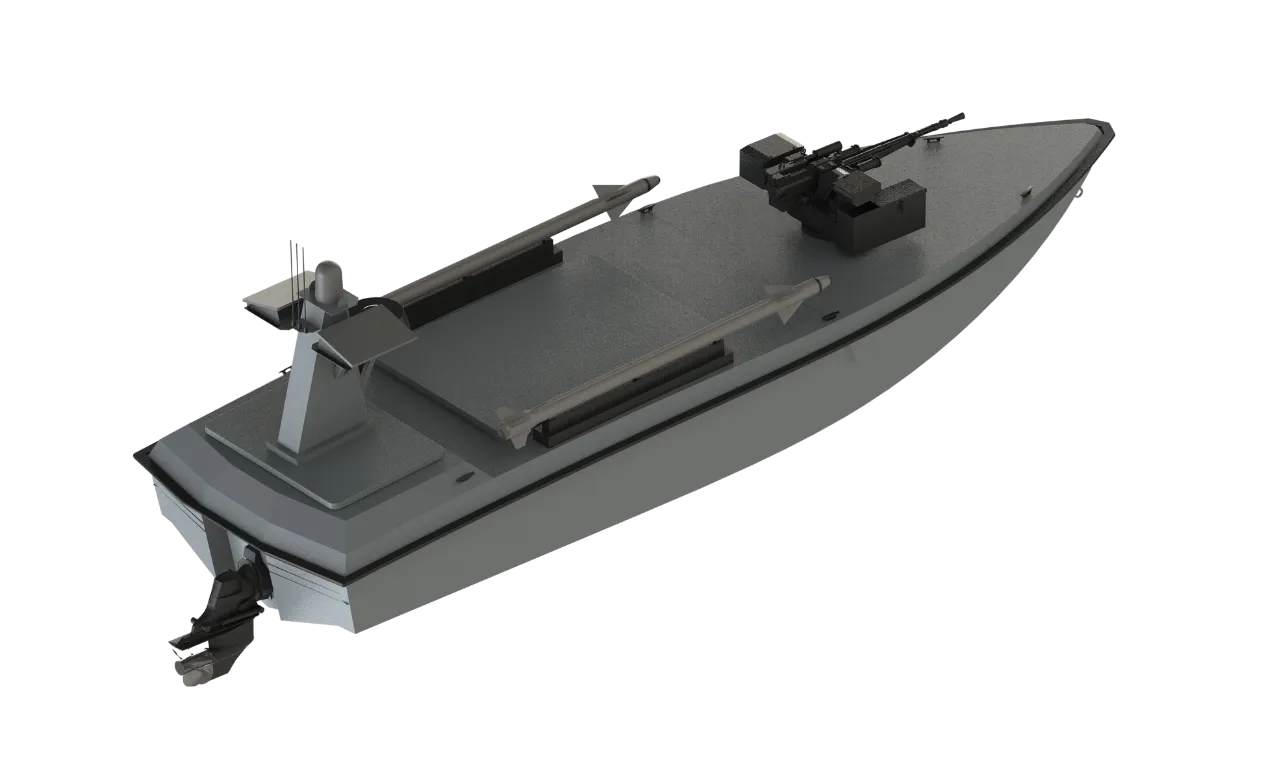

ABOUT USV DOLPHIN 9
Overall, it's a solid mid-sized platform: neither too big nor too small. It can carry medium-sized equipment. A good middle ground — you'll see once it's on the water.
TECHNICAL
SPECIFICATIONS
- Hull material
- Reinforced composite
- Length
- 12 m
- Width
- 3.2 m
- Height
- 1.8 m
- Empty weight
- 4,000 kg
- Load capacity
- 2,000 kg
- Fuel tank capacity
- 2 × 1,500 L
- Engine power
- 2 × 350 HP
- Draft at maximum load
- 0.62 m
- Maximum speed
- 80 km/h

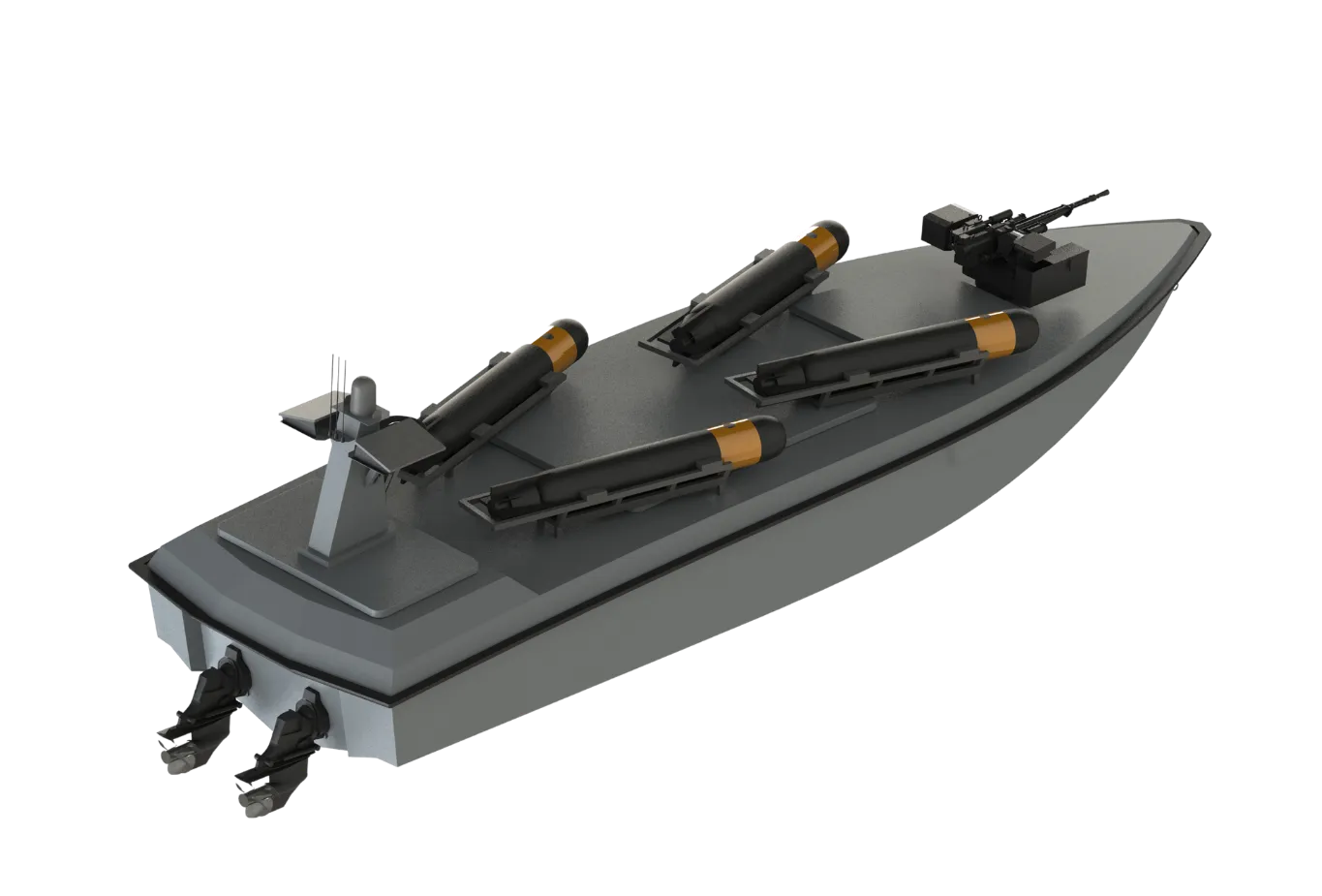

ABOUT USV DOLPHIN 12
A solid vessel.
